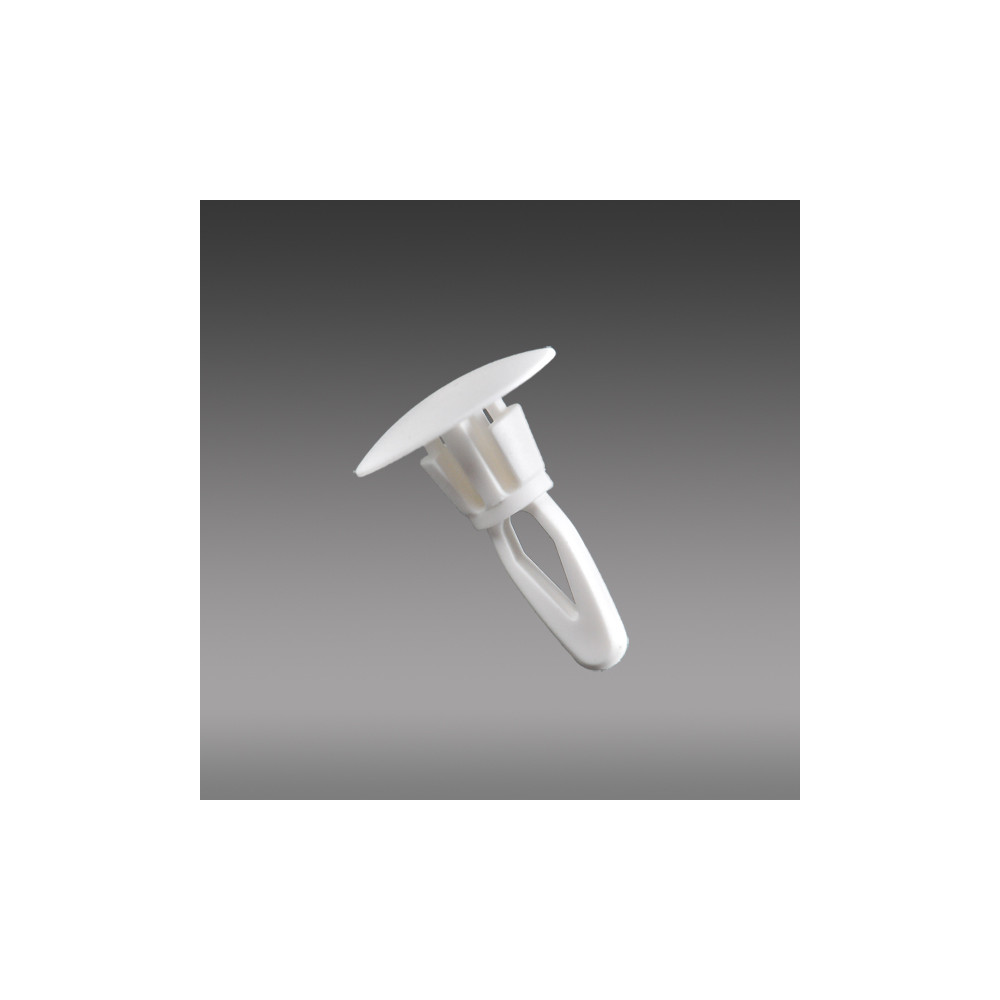

GLCBSC 14 Series - Cupped Reverse Locking Circuit Board Support
136.40 €
VAT excluded Änderungen und Preisirrtümer vorbehalten
Packaging and price unit: 1000

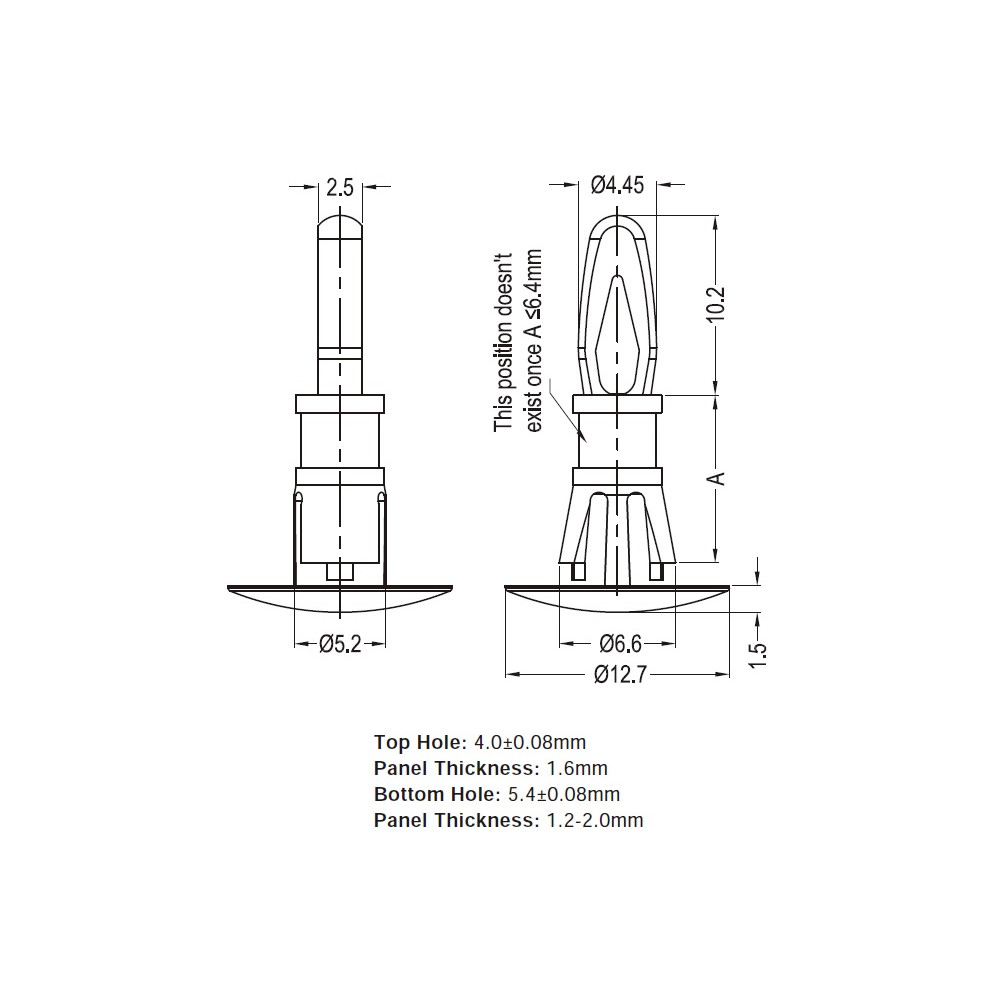

Flat head spacers
In lengths from 4.8- 15.9mm
PCB thickness ≙ 1.6mm (top) & 1.2-2.0mm (bottom) Ø hole ≙ 4.0±0.08mm (top) & 6.4±0.08mm (bottom)
Colour: Natural - Material: PA66 UL 94V2

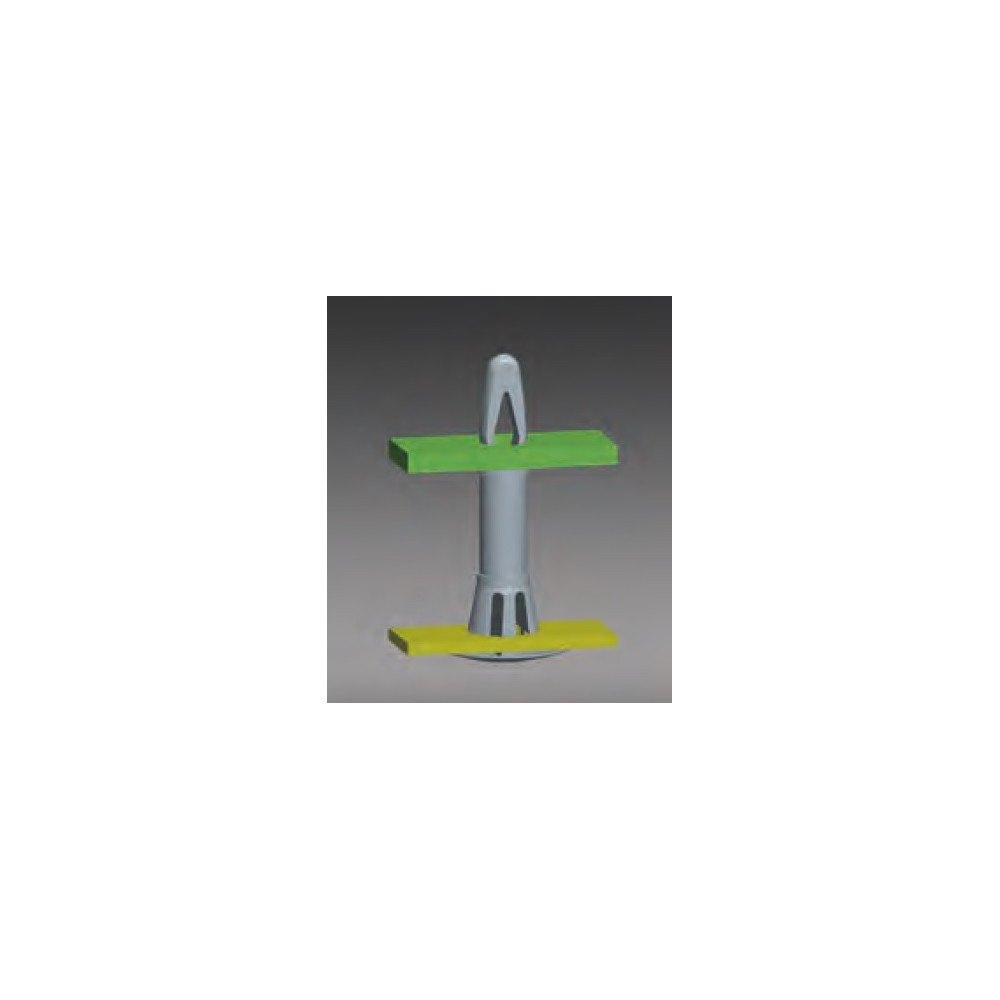

PCB Support - Spacer - Non Locking Bayonet, Reverse Locking Support, Push Spacer
Article no. | Cross-ref. | Material | Colour | A | Top hole | Bottom hole | Top panel thickness | Bottom panel thickness | PU |
GLCBSC14-3-66 | CRCBSRE-3-01 | PA66 UL94V2 | Natural | 4,8 | 4.0 +/- 0.08 | 5.4 +/- 0.08 | 1,6 | 1.2-2.0 | 1000 |
GLCBSC14-3-V0 | CRCBSRE-3-19 | PA66 UL94V0 | Natural | 4,8 | 4.0 +/- 0.08 | 5.4 +/- 0.08 | 1,6 | 1.2-2.0 | 1000 |
GLCBSC14-4-66 | CRCBSRE-4-01 | PA66 UL94V2 | Natural | 6,4 | 4.0 +/- 0.08 | 5.4 +/- 0.08 | 1,6 | 1.2-2.0 | 1000 |
GLCBSC14-4-V0 | CRCBSRE-4-19 | PA66 UL94V0 | Natural | 6,4 | 4.0 +/- 0.08 | 5.4 +/- 0.08 | 1,6 | 1.2-2.0 | 1000 |
GLCBSC14-6-66 | CRCBSRE-6-01 | PA66 UL94V2 | Natural | 9,5 | 4.0 +/- 0.08 | 5.4 +/- 0.08 | 1,6 | 1.2-2.0 | 1000 |
GLCBSC14-6-V0 | CRCBSRE-6-19 | PA66 UL94V0 | Natural | 9,5 | 4.0 +/- 0.08 | 5.4 +/- 0.08 | 1,6 | 1.2-2.0 | 1000 |
GLCBSC14-8-66 | CRCBSRE-8-01 | PA66 UL94V2 | Natural | 12,7 | 4.0 +/- 0.08 | 5.4 +/- 0.08 | 1,6 | 1.2-2.0 | 1000 |
GLCBSC14-8-V0 | CRCBSRE-8-19 | PA66 UL94V0 | Natural | 12,7 | 4.0 +/- 0.08 | 5.4 +/- 0.08 | 1,6 | 1.2-2.0 | 1000 |
GLCBSC14-10-66 | CRCBSRE-10-01 | PA66 UL94V2 | Natural | 15,9 | 4.0 +/- 0.08 | 5.4 +/- 0.08 | 1,6 | 1.2-2.0 | 1000 |
GLCBSC14-10-V0 | CRCBSRE-10-19 | PA66 UL94V0 | Natural | 15,9 | 4.0 +/- 0.08 | 5.4 +/- 0.08 | 1,6 | 1.2-2.0 | 1000 |
- Identical to Richco / Essentra series
- CRCBSRE
- Packaging and price unit
- 1000
- Functional dimension "A" or "L" (if available)
- 3 ≙ 4,8mm; 4 ≙ 6,4mm; 5 ≙ 7,9mm; 6 ≙ 9,5mm; 8 ≙ 12,7mm; 10 ≙ 15,9mm; 12 ≙ 19,1mm
GLCBSC14-3-66
